PRB121
(12V1.3AH/20HR)



SDS Sheet

Printable Version





Specifications

Nominal Voltage 12V
Rated Capacity (20 Hour Rate) 1.3AH

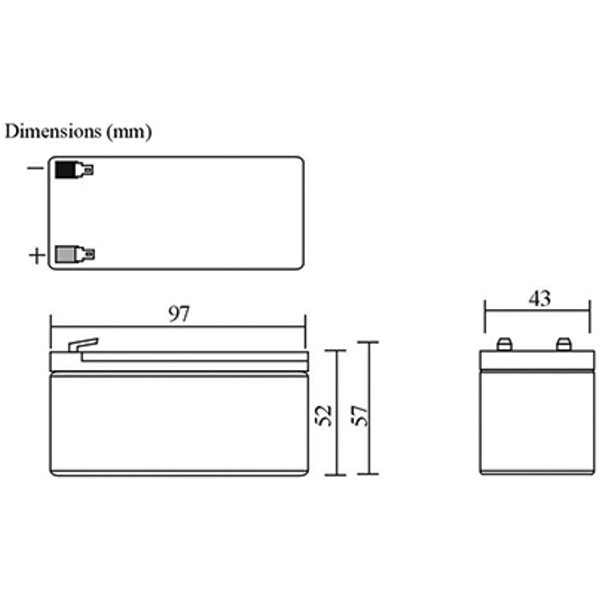

Dimensions (+/-)1mm Length 97mm (3.82")
Width 43mm (1.69")
Height 52mm (2.05")
Total Height (With Terminals) 57mm (2.24")
Weight Approx.0.57kg
Standard Terminal F1

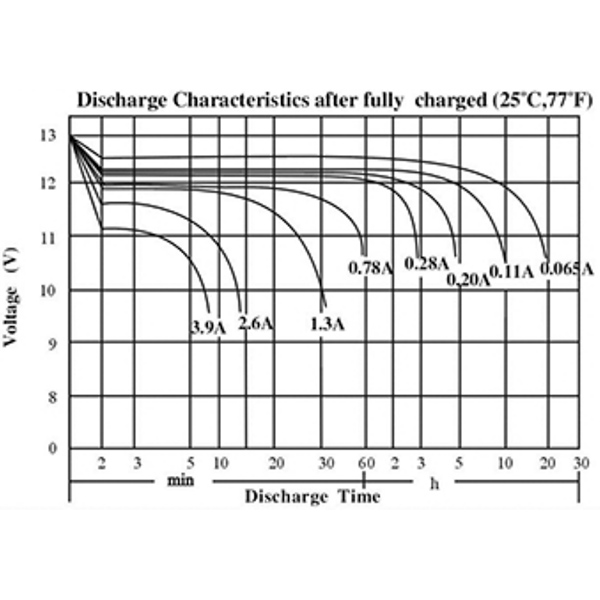

Electrical Specifications

Capacity 25°C (77°F) 20 Hour Rate (0.065A) 1.30AH
10 Hour Rate (0.11A) 1.10AH
5 Hour Rate (0.20A) 1.00AH
1 Hour Rate (0.78A) 0.78AH
Internal Resistance Fully Charged Battery 25°C (77°F) 75mΩ
Capacity Affected
By Temperature
(20 Hour Rate)
40°C (104°F) 105%
25°C (77°F) 100%
0°C (32°F) 85%
Charge Constant Voltage
Cycle:
Initial Charging Current less than 0.39A
Voltage 14.40~15.0V at 25°C (77°F)
Temperature Coefficient -30mV/°C
Standby:
Voltage 13.50~13.80V at 25°C (77°F)
Temperature Coefficient -20mV/°C

About Power Rite Batteries

  • All standard sizes offered from 6V, 2.3 Ah to 12V, 100 Ah.
  • Absorbed Glass Mat (AGM) design for long, trouble free life.
  • Meets or exceeds OEM requirements for use in emergency lighting and alarm systems.
  • Underwriters Laboratories recognized lead acid standby batteries.
  • Non-spillable sealed battery tested for safe transportation.
