PRB12100U
(12V100AH/10HR)



SDS Sheet

Printable Version





Specifications

Nominal Voltage 12V
Rated Capacity (10 Hour Rate) 100AH

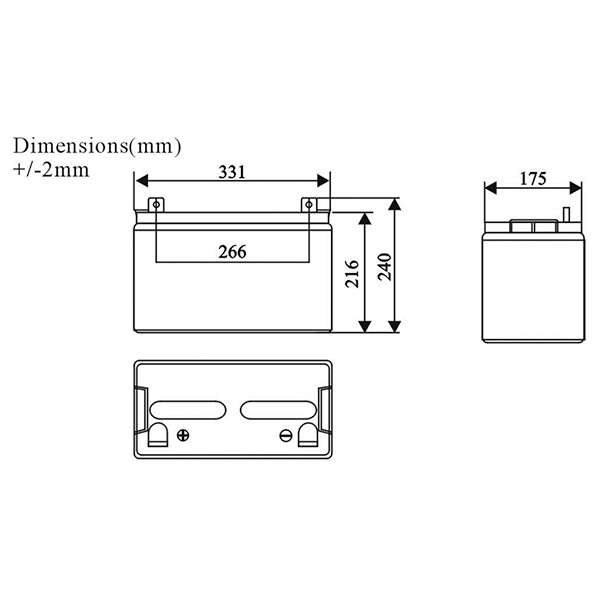

Dimensions (+/-)2mm Length 331mm (13.03")
Width 175mm (6.89")
Height 216mm (8.50")
Total Height (With Terminals) 240mm (9.45")
Weight Approx.30kg
Standard Terminal U

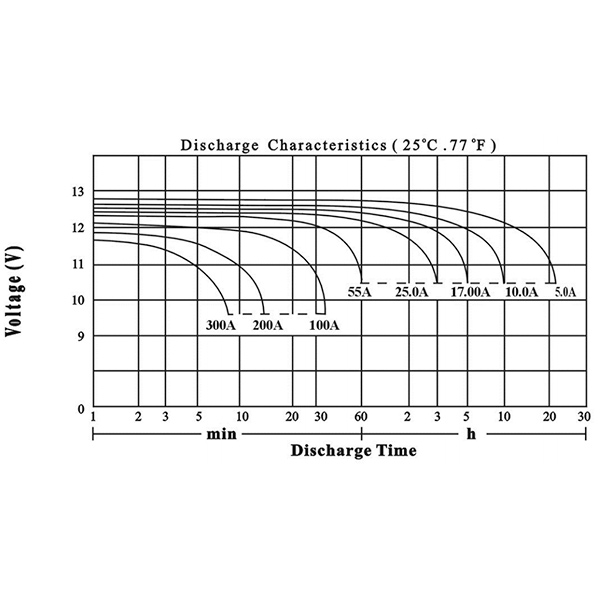

Electrical Specifications

Capacity 25°C (77°F) 10 Hour Rate (10A) 100AH
5 Hour Rate (17A) 85AH
3 Hour Rate (25A) 75AH
1 Hour Rate (55A) 55AH
Internal Resistance Fully Charged Battery 25°C (77°F) 6mΩ
Capacity Affected
By Temperature
(10 Hour Rate)
40°C (104°F) 105%
25°C (77°F) 100%
0°C (32°F) 75%
Charge Constant Voltage
Cycle:
Initial Charging Current less than 30A
Voltage 14.40~15.00V at 25°C (77°F)
Temperature Coefficient -30mV/°C
Standby:
No Limit on Inital Charging Current
Voltage 13.50V~13.80V at 25°C (77°F)
Temperature Coefficient -20mV/°C

About Power Rite Batteries

  • All standard sizes offered from 6V, 2.3 Ah to 12V, 100 Ah.
  • Absorbed Glass Mat (AGM) design for long, trouble free life.
  • Meets or exceeds OEM requirements for use in emergency lighting and alarm systems.
  • Underwriters Laboratories recognized lead acid standby batteries.
  • Non-spillable sealed battery tested for safe transportation.
