PRB1212
(12V12AH/20HR)



SDS Sheet

Printable Version





Specifications

Nominal Voltage 12V
Rated Capacity (20 Hour Rate) 12AH

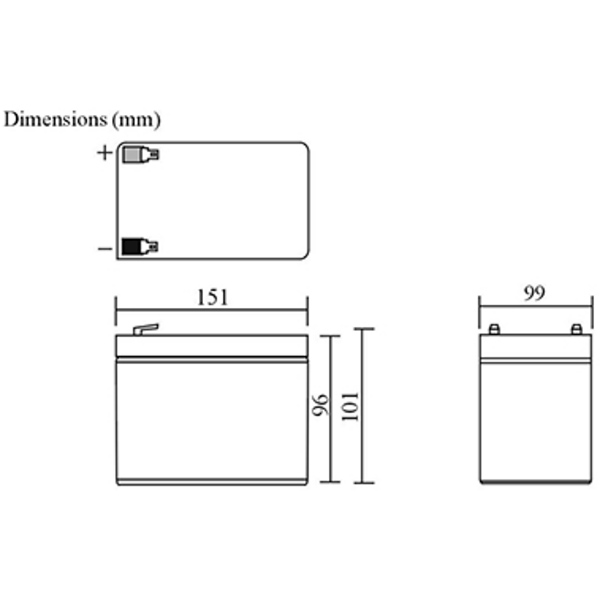

Dimensions (+/-)1mm Length 151mm (5.94")
Width 99mm (3.90")
Height 96mm (3.78")
Total Height (With Terminals) 101mm (3.98")
Weight Approx.3.22kg
Standard Terminal F2

Electrical Specifications

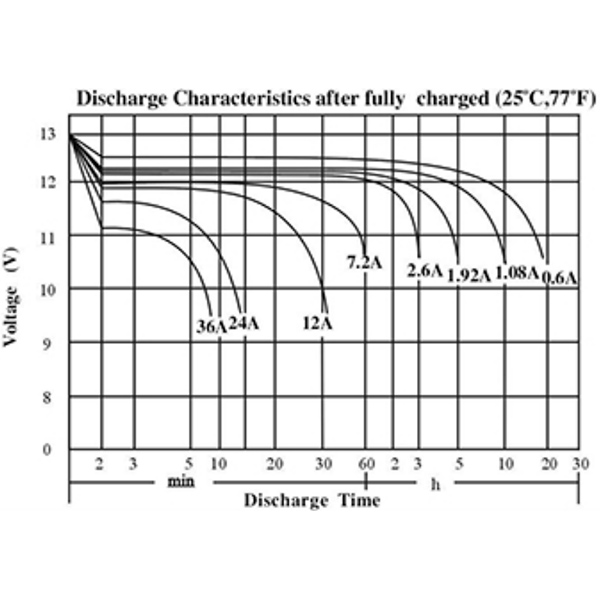

Capacity 25°C (77°F) 20 Hour Rate (0.60A) 12.00AH
10 Hour Rate (1.08A) 10.80AH
5 Hour Rate (1.92A) 9.60AH
1 Hour Rate (7.20A) 7.20AH
Internal Resistance Fully Charged Battery 25°C (77°F) 25mΩ

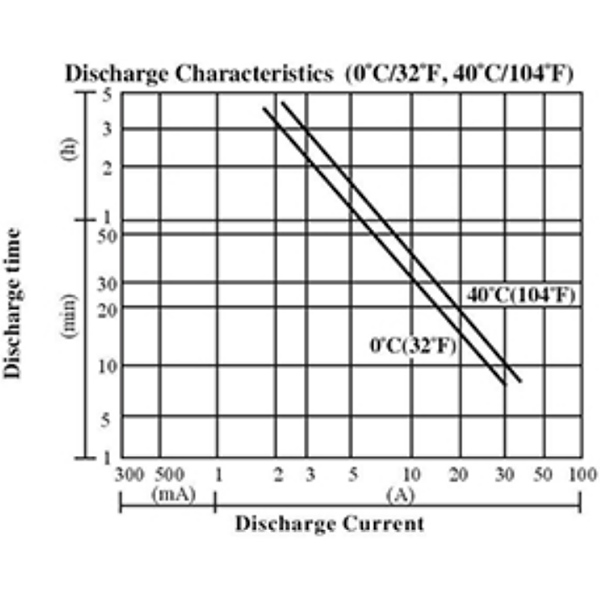

Capacity Affected
By Temperature
(20 Hour Rate)
40°C (104°F) 105%
25°C (77°F) 100%
0°C (32°F) 85%
Charge Constant Voltage
Cycle:
Initial Charging Current less than 3.6A
Voltage 14.40~15.00V at 25°C (77°F)
Temperature Coefficient -30mV/°C
Standby:
Voltage 13.50V~13.80V at 25°C (77°F)
Temperature Coefficient -20mV/°C

About Power Rite Batteries

  • All standard sizes offered from 6V, 2.3 Ah to 12V, 100 Ah.
  • Absorbed Glass Mat (AGM) design for long, trouble free life.
  • Meets or exceeds OEM requirements for use in emergency lighting and alarm systems.
  • Underwriters Laboratories recognized lead acid standby batteries.
  • Non-spillable sealed battery tested for safe transportation.
