PRB1218
(12V18AH/20HR)



SDS Sheet

Printable Version





Specifications

Nominal Voltage 12V
Rated Capacity (20 Hour Rate) 18AH

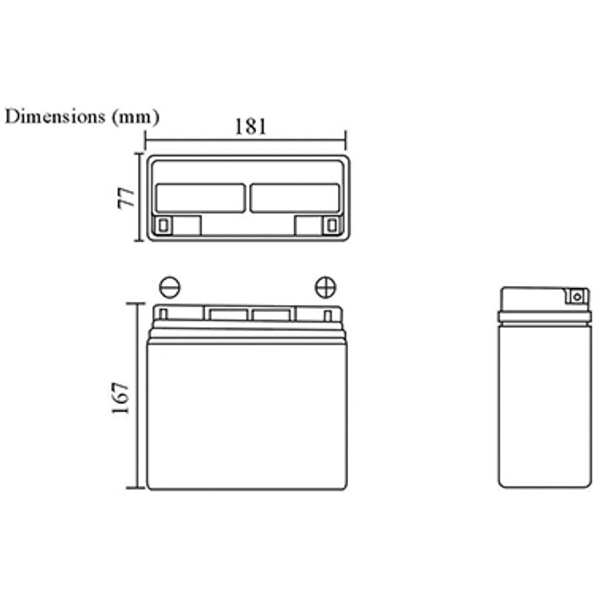

Dimensions (+/-)1mm Length 181mm (7.13")
Width 77mm (3.03")
Height 167mm (6.57")
Total Height (With Terminals) 167mm (6.57")
Weight Approx.5.2kg
Standard Terminal F2

Electrical Specifications

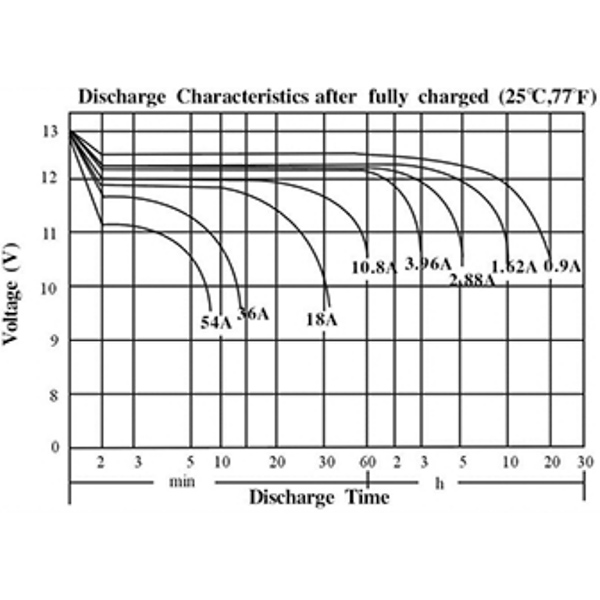

Capacity 25°C (77°F) 20 Hour Rate (0.90A) 18.0AH
10 Hour Rate (1.62A) 16.2AH
5 Hour Rate (2.88A) 14.4AH
1 Hour Rate (10.80A) 10.8AH
Internal Resistance Fully Charged Battery 25°C (77°F) 15mΩ

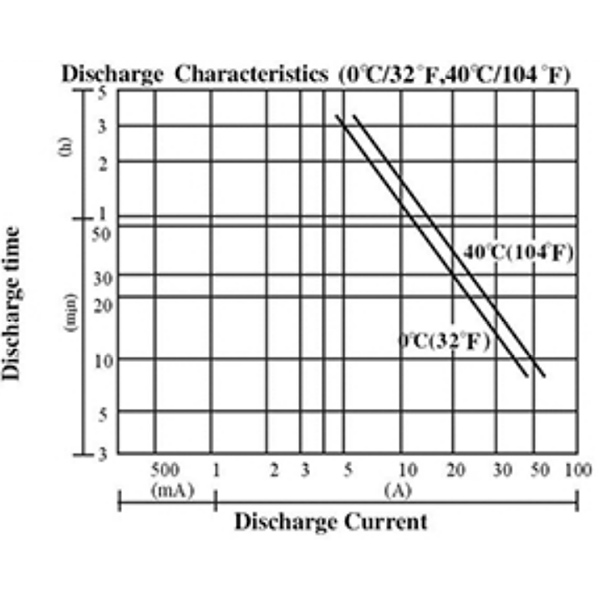

Capacity Affected
By Temperature
(20 Hour Rate)
40°C (104°F) 105%
25°C (77°F) 100%
0°C (32°F) 85%
Charge Constant Voltage
Cycle:
Initial Charging Current less than 5.4A
Voltage 14.40~15.00V at 25°C (77°F)
Temperature Coefficient -30mV/°C
Standby:
Voltage 13.50V~13.80V at 25°C (77°F)
Temperature Coefficient -20mV/°C

About Power Rite Batteries

  • All standard sizes offered from 6V, 2.3 Ah to 12V, 100 Ah.
  • Absorbed Glass Mat (AGM) design for long, trouble free life.
  • Meets or exceeds OEM requirements for use in emergency lighting and alarm systems.
  • Underwriters Laboratories recognized lead acid standby batteries.
  • Non-spillable sealed battery tested for safe transportation.
