PRB124
(12V4AH/20HR)



SDS Sheet

Printable Version





Specifications

Nominal Voltage 12V
Rated Capacity (20 Hour Rate) 4AH

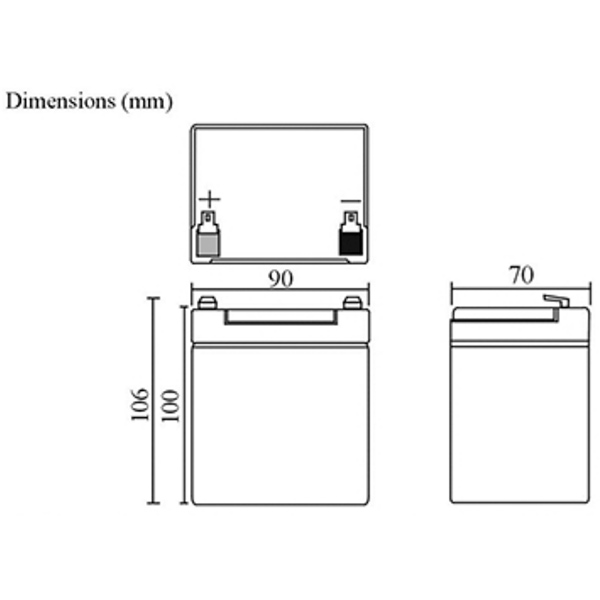

Dimensions (+/-)1mm Length 90mm (3.54")
Width 70mm (2.76")
Height 100mm (3.93")
Total Height (With Terminals) 106mm (4.17")
Weight Approx.1.45kg
Standard Terminal F1

Electrical Specifications

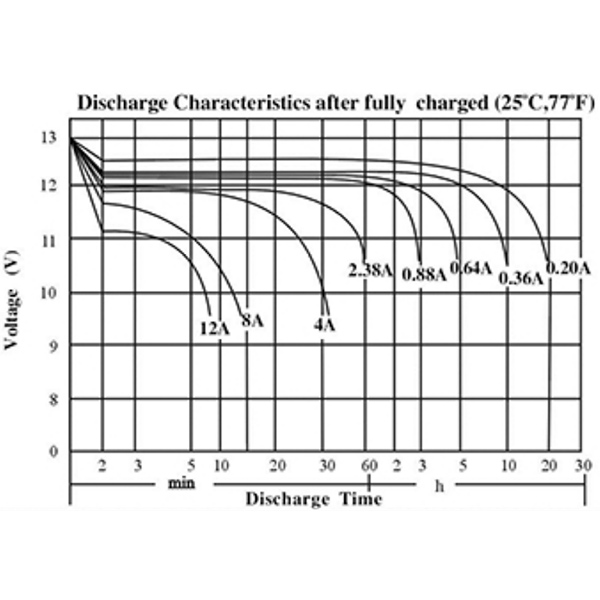

Capacity 25°C (77°F) 20 Hour Rate (0.20A) 4.0AH
10 Hour Rate (0.36A) 3.6AH
5 Hour Rate (0.64A) 3.2AH
1 Hour Rate (2.38A) 2.4AH
Internal Resistance Fully Charged Battery 25°C (77°F) 40mΩ

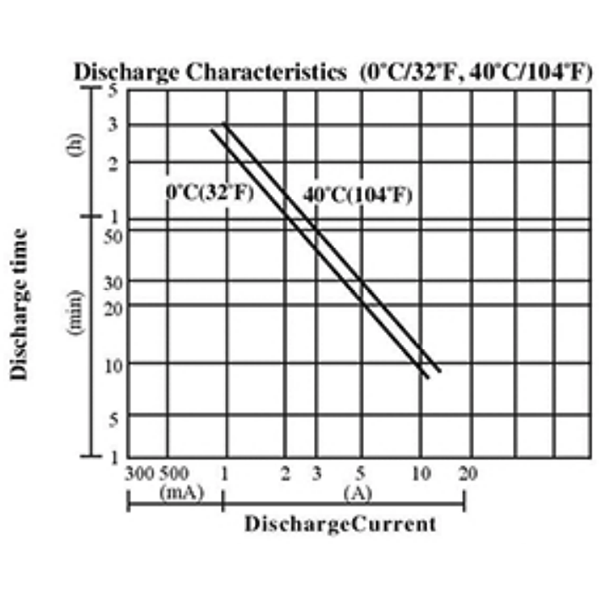

Capacity Affected
By Temperature
(20 Hour Rate)
40°C (104°F) 105%
25°C (77°F) 100%
0°C (32°F) 85%
Charge Constant Voltage
Cycle:
Initial Charging Current less than 1.2A
Voltage 14.40~15.00V at 25°C (77°F)
Temperature Coefficient -30mV/°C
Standby:
Voltage 13.50~13.80V at 25°C (77°F)
Temperature Coefficient -20mV/°C

About Power Rite Batteries

  • All standard sizes offered from 6V, 2.3 Ah to 12V, 100 Ah.
  • Absorbed Glass Mat (AGM) design for long, trouble free life.
  • Meets or exceeds OEM requirements for use in emergency lighting and alarm systems.
  • Underwriters Laboratories recognized lead acid standby batteries.
  • Non-spillable sealed battery tested for safe transportation.
