PRB125
(12V5AH/20HR)



SDS Sheet

Printable Version





Specifications

Nominal Voltage 12V
Rated Capacity (20 Hour Rate) 5AH

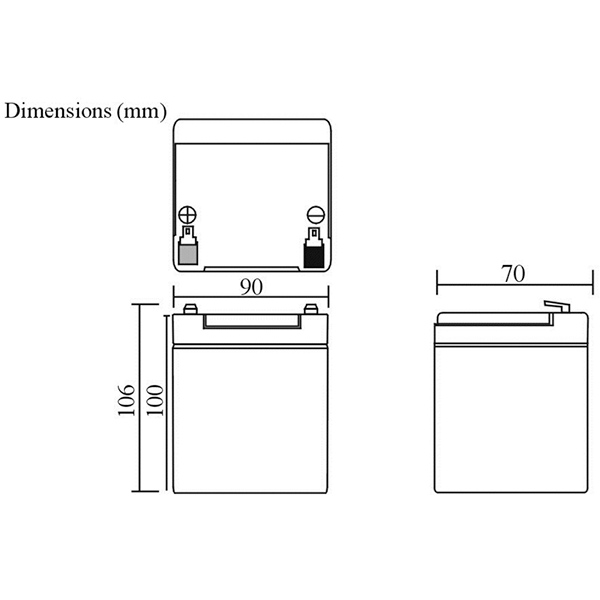

Dimensions (+/-)1mm Length 90mm (3.54")
Width 70mm (2.76")
Height 100mm (3.93")
Total Height (With Terminals) 106mm (4.17")
Weight Approx.1.6kg
Standard Terminal F1

Electrical Specifications

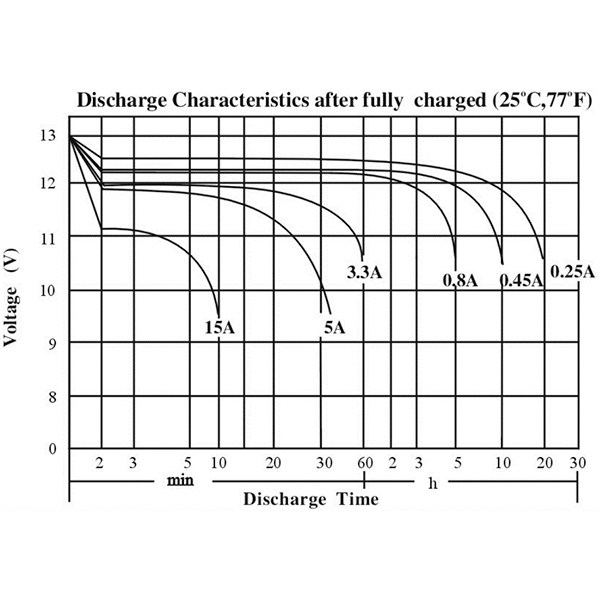

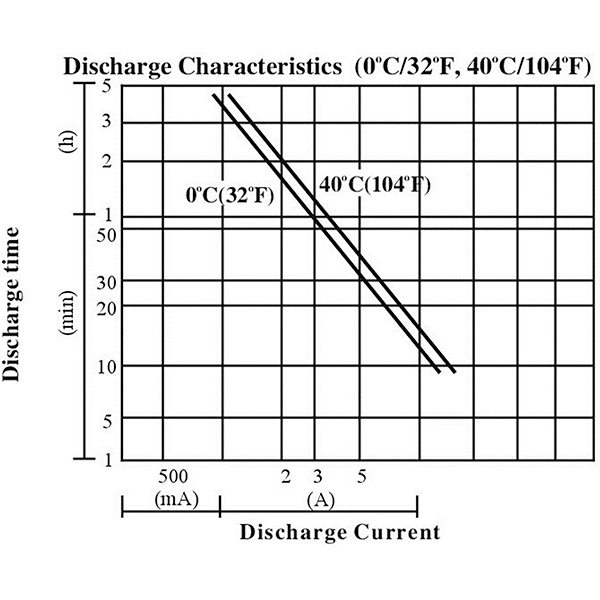

Capacity 25°C (77°F) 20 Hour Rate (0.25A) 5.0AH
10 Hour Rate (0.45A) 4.5AH
5 Hour Rate (0.80A) 4.0AH
1 Hour Rate (3.30A) 3.3AH
Internal Resistance Fully Charged Battery 25°C (77°F) 30mΩ
Capacity Affected
By Temperature
(20 Hour Rate)
40°C (104°F) 105%
25°C (77°F) 100%
0°C (32°F) 85%
Charge Constant Voltage
Cycle:
Initial Charging Current less than 1.5A
Voltage 14.40~15.00V at 25°C (77°F)
Temperature Coefficient -30mV/°C
Standby:
Voltage 13.50~13.80V at 25°C (77°F)
Temperature Coefficient -20mV/°C

About Power Rite Batteries

  • All standard sizes offered from 6V, 2.3 Ah to 12V, 100 Ah.
  • Absorbed Glass Mat (AGM) design for long, trouble free life.
  • Meets or exceeds OEM requirements for use in emergency lighting and alarm systems.
  • Underwriters Laboratories recognized lead acid standby batteries.
  • Non-spillable sealed battery tested for safe transportation.
