PRB1275U
(12V75AH/10HR)



SDS Sheet

Printable Version





Specifications

Nominal Voltage 12V
Rated Capacity (10 Hour Rate) 75AH

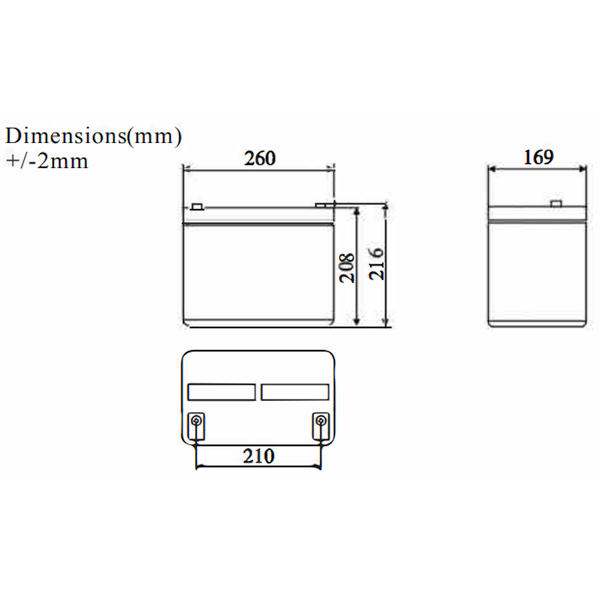

Dimensions (+/-)2mm Length 260mm (10.24")
Width 169mm (6.65")
Height 208mm (8.19")
Total Height (With Terminals) 213mm (8.39")
Weight Approx.21kg
Standard Terminal U

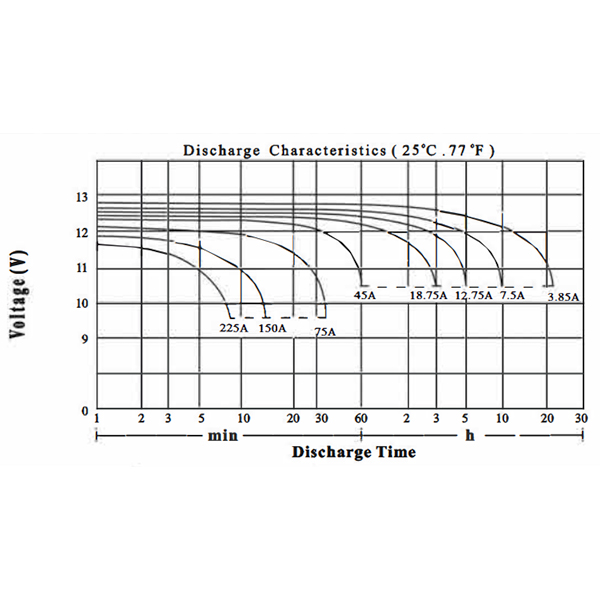

Electrical Specifications

Capacity 25°C (77°F)
10 Hour Rate (7.00A) 75.00AH
5 Hour Rate (12.75A) 63.75AH
3 Hour Rate (18.75A) 56.25AH
1 Hour Rate (45.00A) 45.00AH
Internal Resistance Fully Charged Battery 25°C (77°F) 6mΩ
Capacity Affected
By Temperature
(10 Hour Rate)
40°C (104°F) 102%
25°C (77°F) 100%
0°C (32°F) 85%
Charge Constant Voltage
Cycle:
Initial Charging Current less than 22.5A
Voltage 14.10~14.40V at 25°C (77°F)
Temperature Coefficient -30mV/°C
Standby:
No Limit on Inital Charging Current
Voltage 13.50V~13.80V at 25°C (77°F)
Temperature Coefficient -20mV/°C

About Power Rite Batteries

  • All standard sizes offered from 6V, 2.3 Ah to 12V, 100 Ah.
  • Absorbed Glass Mat (AGM) design for long, trouble free life.
  • Meets or exceeds OEM requirements for use in emergency lighting and alarm systems.
  • Underwriters Laboratories recognized lead acid standby batteries.
  • Non-spillable sealed battery tested for safe transportation.
