PRB128
(6V4.5AH/20HR)



SDS Sheet

Printable Version





Specifications

Nominal Voltage 12V
Rated Capacity (20 Hour Rate) 8AH

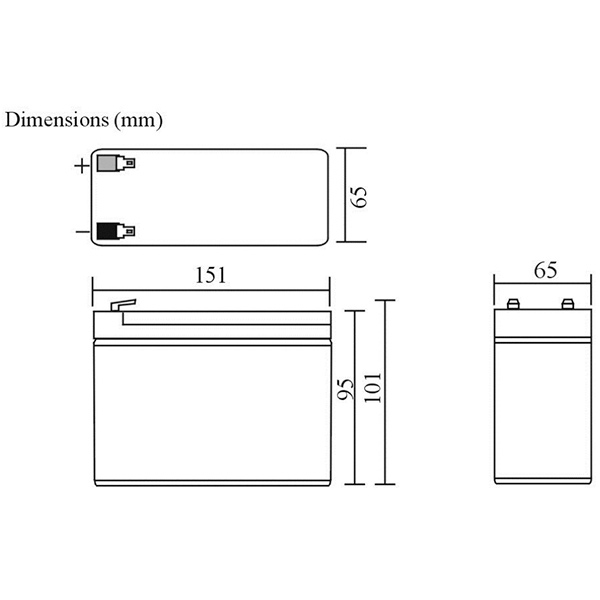

Dimensions (+/-)1mm Length 151mm (5.94")
Width 65mm (2.56")
Height 95mm (3.74")
Total Height (With Terminals) 101mm (3.98")
Weight Approx.2.5kg
Standard Terminal F1

Electrical Specifications

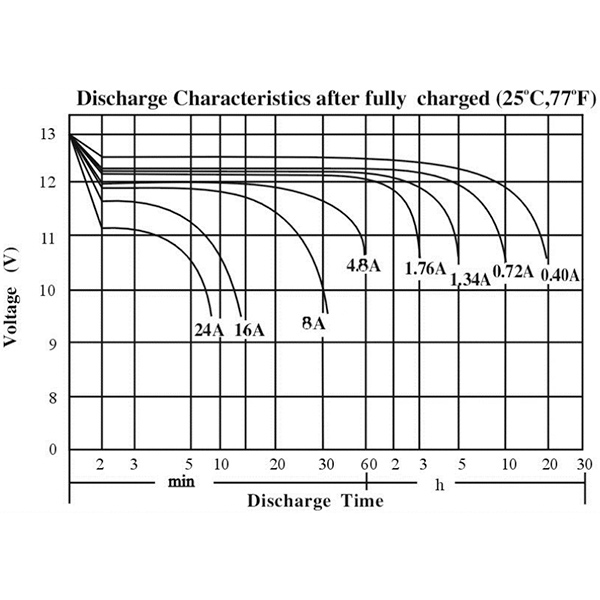

Capacity 25°C (77°F) 20 Hour Rate (0.40A) 8.00AH
10 Hour Rate (0.72A) 7.25AH
5 Hour Rate (1.34A) 6.68AH
1 Hour Rate (4.80A) 4.80AH
Internal Resistance Fully Charged Battery 25°C (77°F) 25mΩ

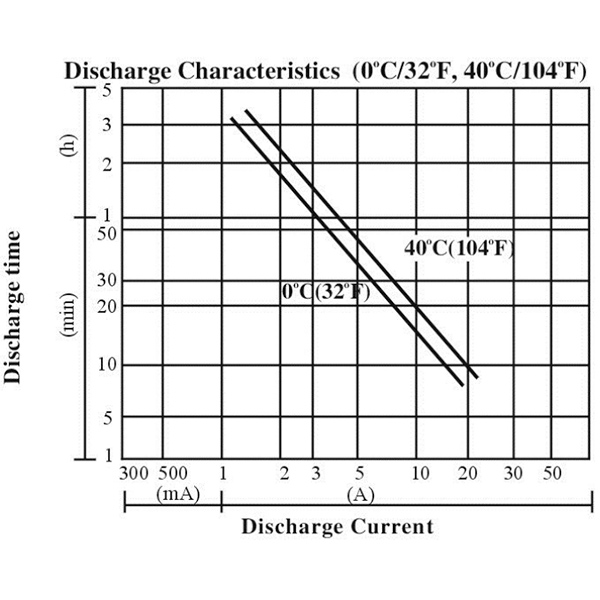

Capacity Affected
By Temperature
(20 Hour Rate)
40°C (104°F) 105%
25°C (77°F) 100%
0°C (32°F) 85%
Charge Constant Voltage
Cycle:
Initial Charging Current less than 2.4A
Voltage14.40~15.00V at 25°C (77°F)
Temperature Coefficient -30mV/°C
Standby:
Voltage 13.50~13.80V at 25°C (77°F)
Temperature Coefficient -20mV/°C

About Power Rite Batteries

  • All standard sizes offered from 6V, 2.3 Ah to 12V, 100 Ah.
  • Absorbed Glass Mat (AGM) design for long, trouble free life.
  • Meets or exceeds OEM requirements for use in emergency lighting and alarm systems.
  • Underwriters Laboratories recognized lead acid standby batteries.
  • Non-spillable sealed battery tested for safe transportation.
