PRB612
(6V12AH/20HR)



SDS Sheet

Printable Version





Specifications

Nominal Voltage 6V
Rated Capacity (20 Hour Rate) 12AH

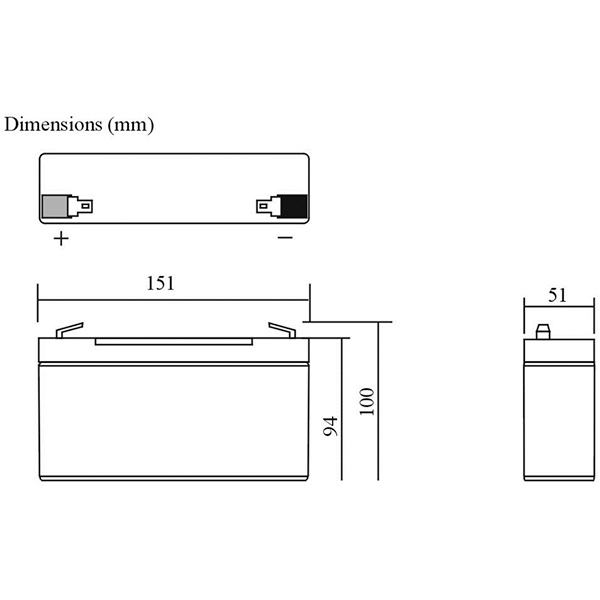

Dimensions (+/-)1mm Length 151mm (5.94")
Width 51mm (2.00")
Height 94mm (3.70")
Total Height (With Terminals) 100mm (3.94")
Weight Approx.1.7kg
Standard Terminal F1

Electrical Specifications

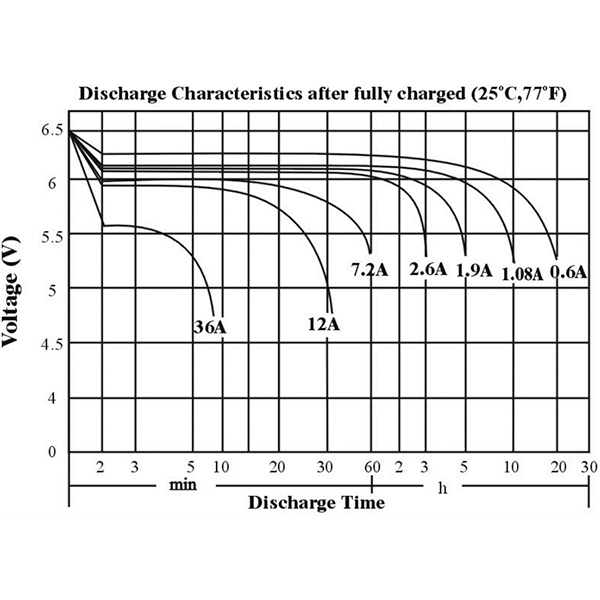

Capacity 25°C (77°F) 20 Hour Rate (0.60A) 12.0AH
10 Hour Rate (1.08A) 10.8AH
5 Hour Rate (1.90A) 9.5AH
1 Hour Rate (7.2A) 7.20AH
Internal Resistance Fully Charged Battery 25°C (77°F) 10mΩ

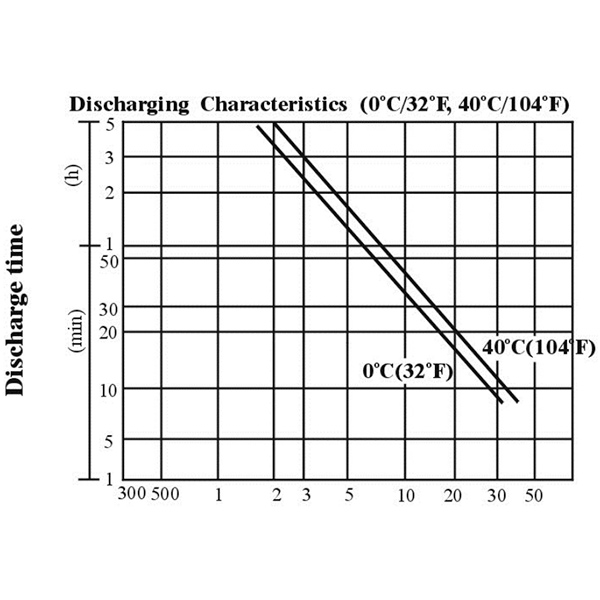

Capacity Affected
By Temperature
(20 Hour Rate)
40°C (104°F) 105%
25°C (77°F) 100%
0°C (32°F) 85%
Charge Constant Voltage
Cycle:
Initial Charging Current less than 3.6A
Voltage 7.20~7.50V at 25°C (77°F)
Temperature Coefficient -15mV/°C
Standby:
Voltage 6.75~6.90V at 25°C (77°F)
Temperature Coefficient -10mV/°C

About Power Rite Batteries

  • All standard sizes offered from 6V, 2.3 Ah to 12V, 100 Ah.
  • Absorbed Glass Mat (AGM) design for long, trouble free life.
  • Meets or exceeds OEM requirements for use in emergency lighting and alarm systems.
  • Underwriters Laboratories recognized lead acid standby batteries.
  • Non-spillable sealed battery tested for safe transportation.
