PRB623
(6V2.3AH/20HR)



SDS Sheet

Printable Version

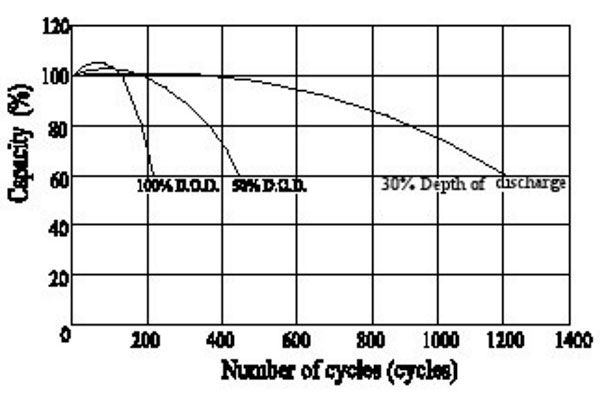

Cycle Life (25°C)


Specifications

Nominal Voltage 6V
Rated Capacity (20 Hour Rate) 2.3AH

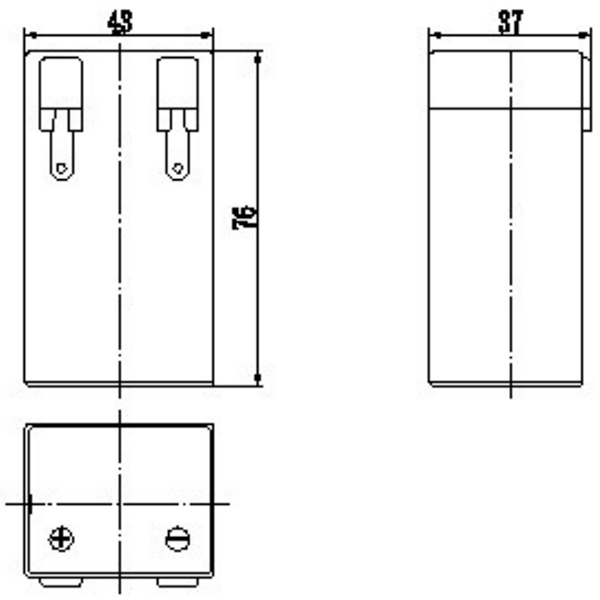

Dimensions (+/-)1mm Length 43mm (1.69")
Width 37mm (1.46")
Height 76mm (2.99")
Total Height (With Terminals) 76mm (2.99")
Weight Approx.0.34kg
Standard Terminal F1 Extended

Electrical Specifications

Capacity 25°C (77°F) 20 Hour Rate (0.115A) 2.30AH
10 Hour Rate (0.20A) 2.00AH
5 Hour Rate (0.36A) 1.80AH
1 Hour Rate (1.32A) 1.32AH
Internal Resistance Fully Charged Battery 25°C (77°F) 40mΩ
Capacity Affected
By Temperature
(20 Hour Rate)
40°C (104°F) 102%
25°C (77°F) 100%
0°C (32°F) 85%
-15°C (5°F) 65%

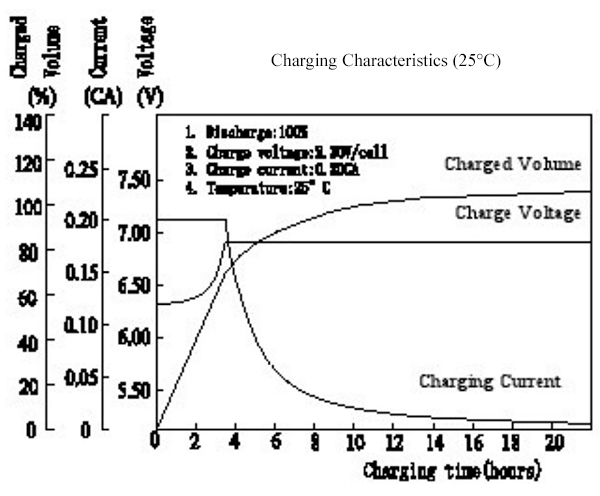

Charge Constant Voltage
Cycle:
Initial Charging Current less than 0.69A
Voltage 7.25~7.45V at 25°C (77°F)
Temperature Coefficient -15mV/°C
Standby:
Voltage 6.80~6.90V at 25°C (77°F)
Temperature Coefficient -10mV/°C

About Power Rite Batteries

  • All standard sizes offered from 6V, 2.3 Ah to 12V, 100 Ah.
  • Absorbed Glass Mat (AGM) design for long, trouble free life.
  • Meets or exceeds OEM requirements for use in emergency lighting and alarm systems.
  • Underwriters Laboratories recognized lead acid standby batteries.
  • Non-spillable sealed battery tested for safe transportation.
