Products

PRB64
(6V4.5AH/20HR)



SDS Sheet

Printable Version





Specifications

Nominal Voltage 6V
Rated Capacity (20 Hour Rate) 4.5AH

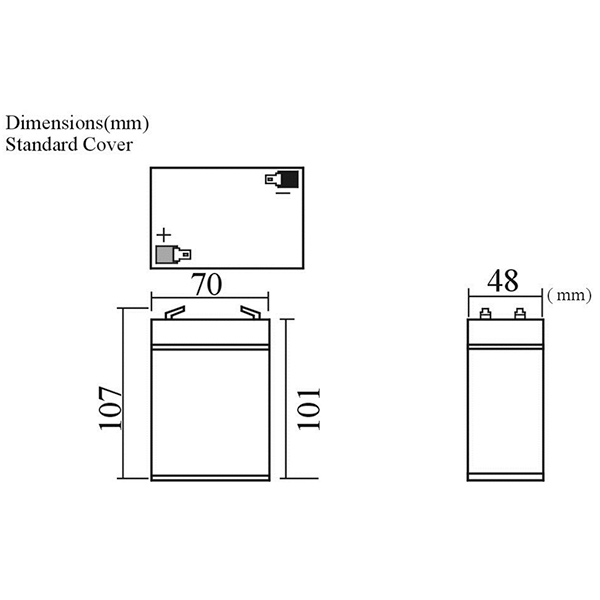

Dimensions (+/-)1mm Length 70mm (2.76")
Width 48mm (1.89")
Height 101mm (3.98")
Total Height (With Terminals) 107mm (4.21")
Weight Approx.0.76kg
Standard Terminal F1

Electrical Specifications

Capacity 25°C (77°F) 20 Hour Rate (0.225A) 4.5AH
10 Hour Rate (0.41A) 4.1AH
5 Hour Rate (0.72A) 3.6AH
1 Hour Rate (2.7A) 2.7AH
Internal Resistance Fully Charged Battery 25°C (77°F) 25mΩ
Capacity Affected
By Temperature
(20 Hour Rate)
40°C (104°F) 105%
25°C (77°F) 100%
0°C (32°F) 85%
Charge Constant Voltage
Cycle:
Initial Charging Current less than 1.35A
Voltage 7.20~7.50V at 25°C (77°F)
Temperature Coefficient -15mV/°C
Standby:
Voltage 6.75~6.90V at 25°C (77°F)
Temperature Coefficient -10mV/°C

About Power Rite Batteries

  • All standard sizes offered from 6V, 2.3 Ah to 12V, 100 Ah.
  • Absorbed Glass Mat (AGM) design for long, trouble free life.
  • Meets or exceeds OEM requirements for use in emergency lighting and alarm systems.
  • Underwriters Laboratories recognized lead acid standby batteries.
  • Non-spillable sealed battery tested for safe transportation.
