PRBAAA
(AAA Alkaline Battery)



Printable Version









Specifications

Type Designation ANSI-24A , IEC-LR03
Chemical System (-) Zn︱KOH-H2O︱MnO2 (+)
Mercury, cadmium, and lead are not added in the battery.
Nominal Voltage: 1.5V
Weight Approx. 11.2g
Nominal Capacity Approx. 1240mAh (20±2ºC, 75Ω-4h/d, e.v.=0.9V)
Jacket Foil Label

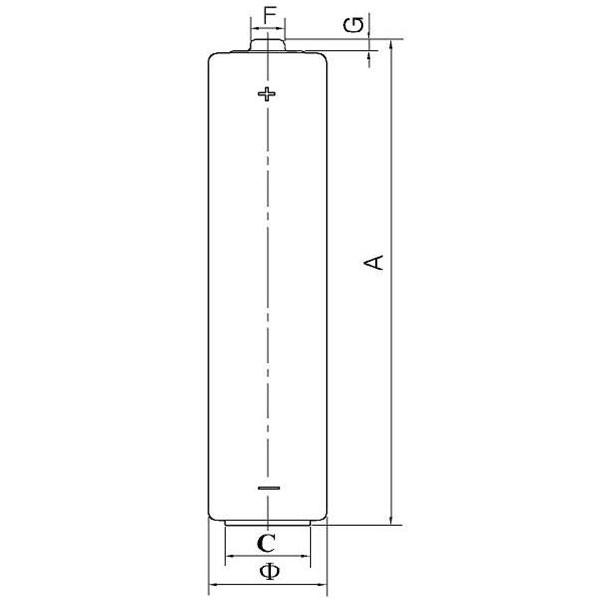

Dimensions

/ MAX MIN
mm in mm in
Ф 10.4 0.409 10.1 0.398
A 44.4 1.750 43.9 1.728
C / / 6.0 0.236
F 3.6 0.142 / /
G / / 1.0 0.039

Notes:

  • Store in cool, dry place before use
  • It is recommended that the storage temperature be lower than 30ºC (86ºF)
  • Do not keep batteries at relative humidity of 65% or above for long time
  • Up to 10-year shelf life from date of manufacture (under proper storage cond.)

Electrical Characteristics:

Unless otherwise stated, all measurements are to be performed at a Standard Environment of 20±2ºC (64.4-71.6ºF), 60±15%R.H.


Electrical Specifications

Discharge Condition

IEC60086-2:
2011
Standard

Discharge Time

Load

Test Mode

End
Voltage

Initial

After 1 year at 20±2ºC

MAD

Normal

MAD

Normal

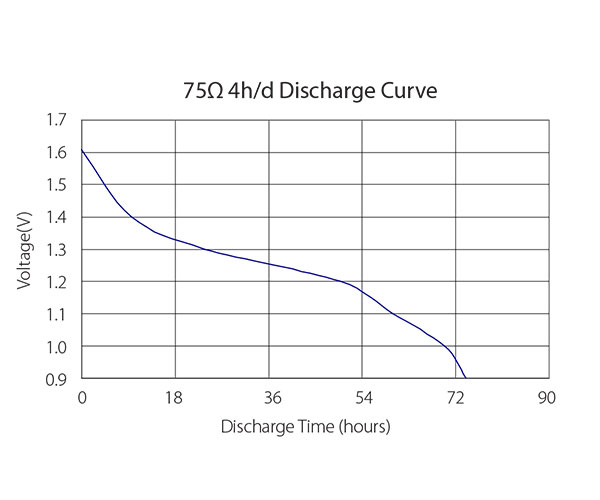

75Ω 4h/d 0.9V 44h 72h 74h 69.5h 72h

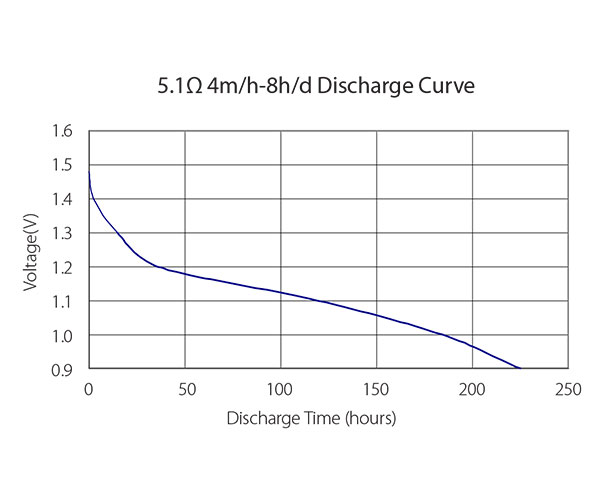

5.1Ω 4m/h, 8h/d 0.9V 130m 230m 245m 215m 230m

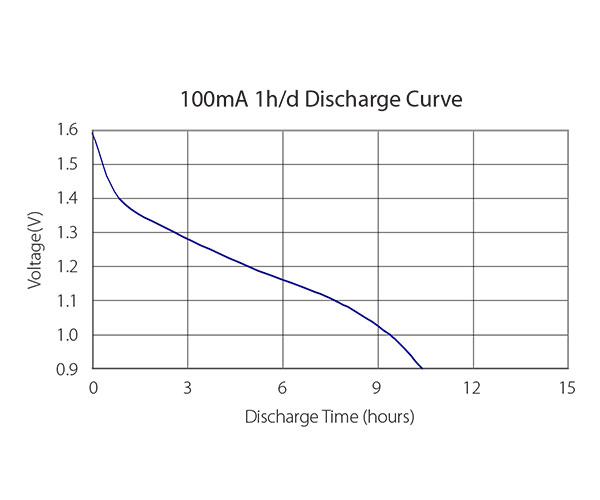

100mA 1h/d 0.9V 7h 9.5h 10.1h 8.8h 9.3h

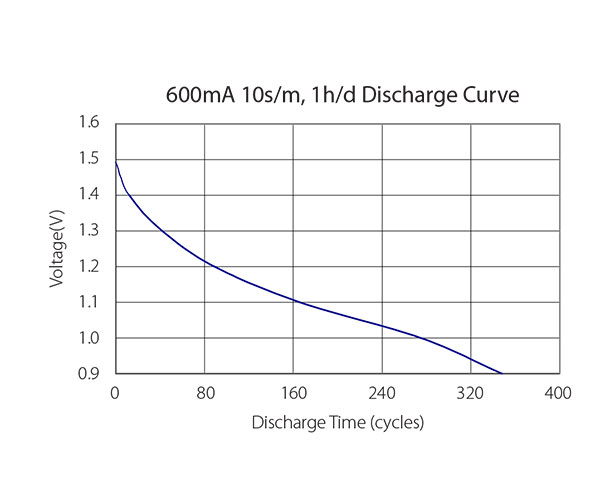

600mA 10s/m, 1h/d 0.9V 170p 330p 360p 290p 320p

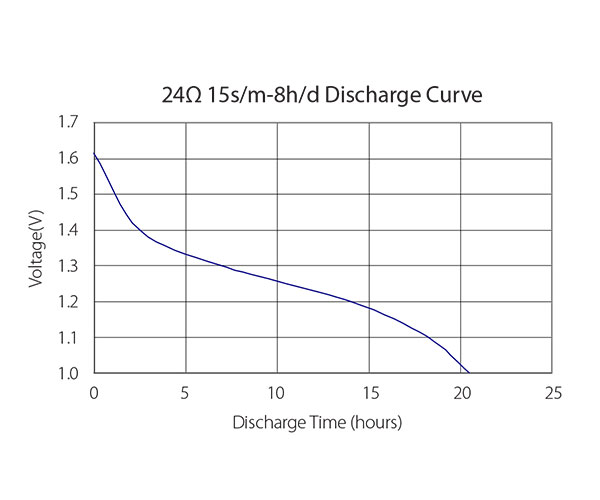

24Ω 15s/m-8h/d 1.0V 14.5h 19h 20.5h 18.3h 19.7h
5.1Ω 1h/d 0.8V 2h 3.7h 4h 3.4h 3.7h

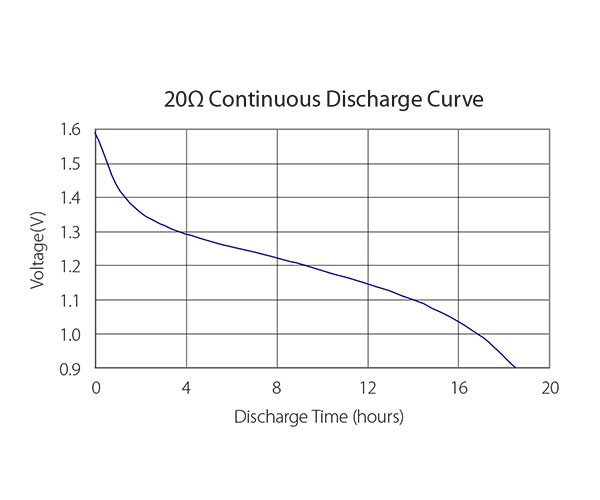

20Ω
reference
24h/d 0.9V / 17.5h 18h 16.5h 17h
Remarks • MAD - Minimum Average Discharge (h-hour) (d-day)
• Actual performance for each lot may be slightly different from normal performance.
